PETZL TRANSPORT ROLLER REEVE

€167.76*

% €185.00* (9.32% saved)

Prices inclusive VAT / Free delivery on orders over 50€

Available in 14 days, delivery time 1-3 days

Features

Optimiertes Handling & Effizienz
Viele Möglichkeiten zur Konfiguration & Verbindungen

Transport pulley for rescues on ropeways

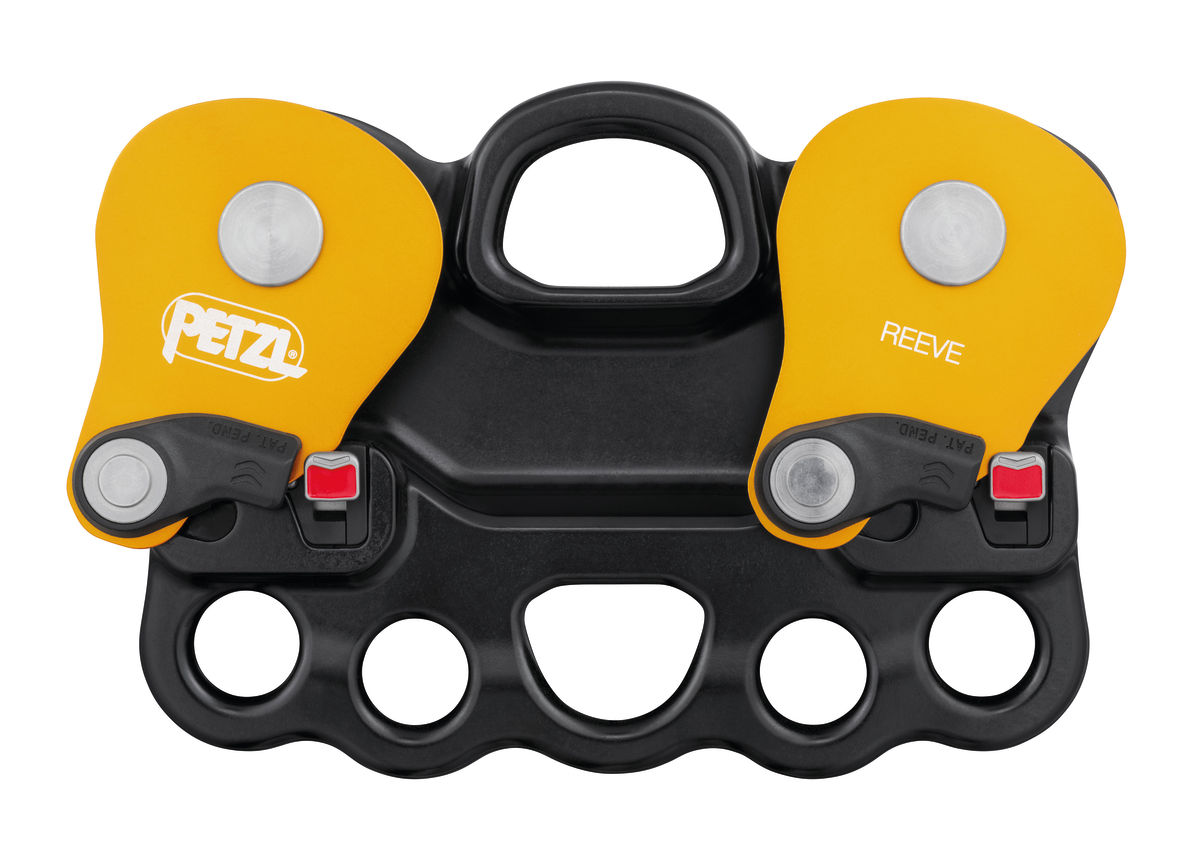

The REEVE transport pulley is a combination of two rope pulleys and a rigging plate. It is an integrated solution and makes it easier to set up rescue systems on ropeways. The compact format of the transport pulley limits the number of carabiners used and the height of the system. The two large rollers with encapsulated ball bearings ensure excellent manoeuvrability. The numerous connecting eyelets are suitable for passing ropes and slings directly through and for attaching carabiners, allowing better organisation.

Cross-selling: SPIN S1 SPIN S1 OPEN SPIN L1 SPIN L2 RESCUE PARALLEL 10.5 mm AXIS 11 mm RAY 11 mm OK Am'D WILLIAM Bm'D OXAN VULCAN

Integrierte Lösung zum erleichterten Einrichten von Rettungssystemen an Seilbahnen: Dank des reduzierten, kompakten Formats begrenzt die REEVE-Transportrolle die Anzahl der verwendeten Karabiner und die Höhe des Systems.

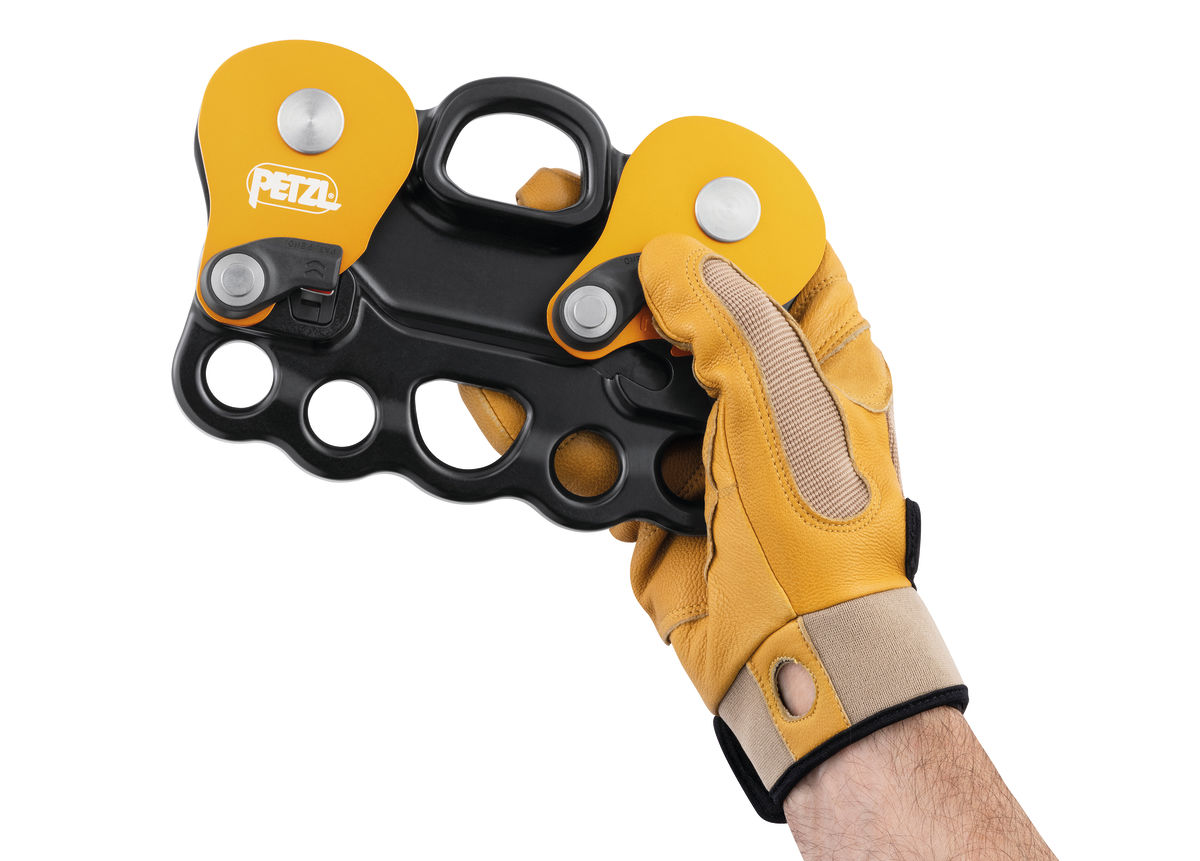

Die beweglichen Seitenteile lassen sich auch mit Handschuhen schnell und einfach in drei Schritten öffnen. Rote Indikatoren sind sichtbar, solange die Seitenteile nicht korrekt verriegelt sind. Zwei große Laufrollen mit gekapseltem Kugellager gewährleisten einen ausgezeichneten Wirkungsgrad bei der Fortbewegung. Das System kann vor der Einrichtung am Hauptseil vorbereitet werden.

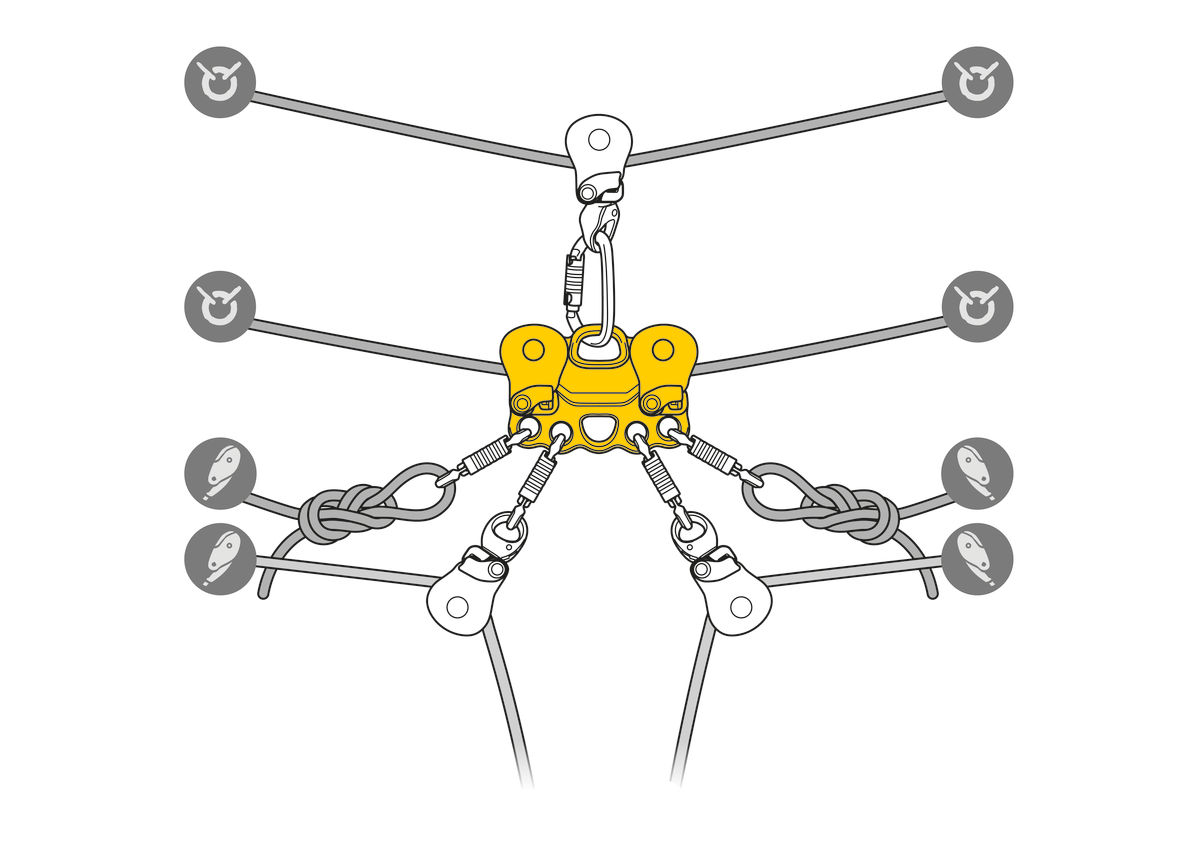

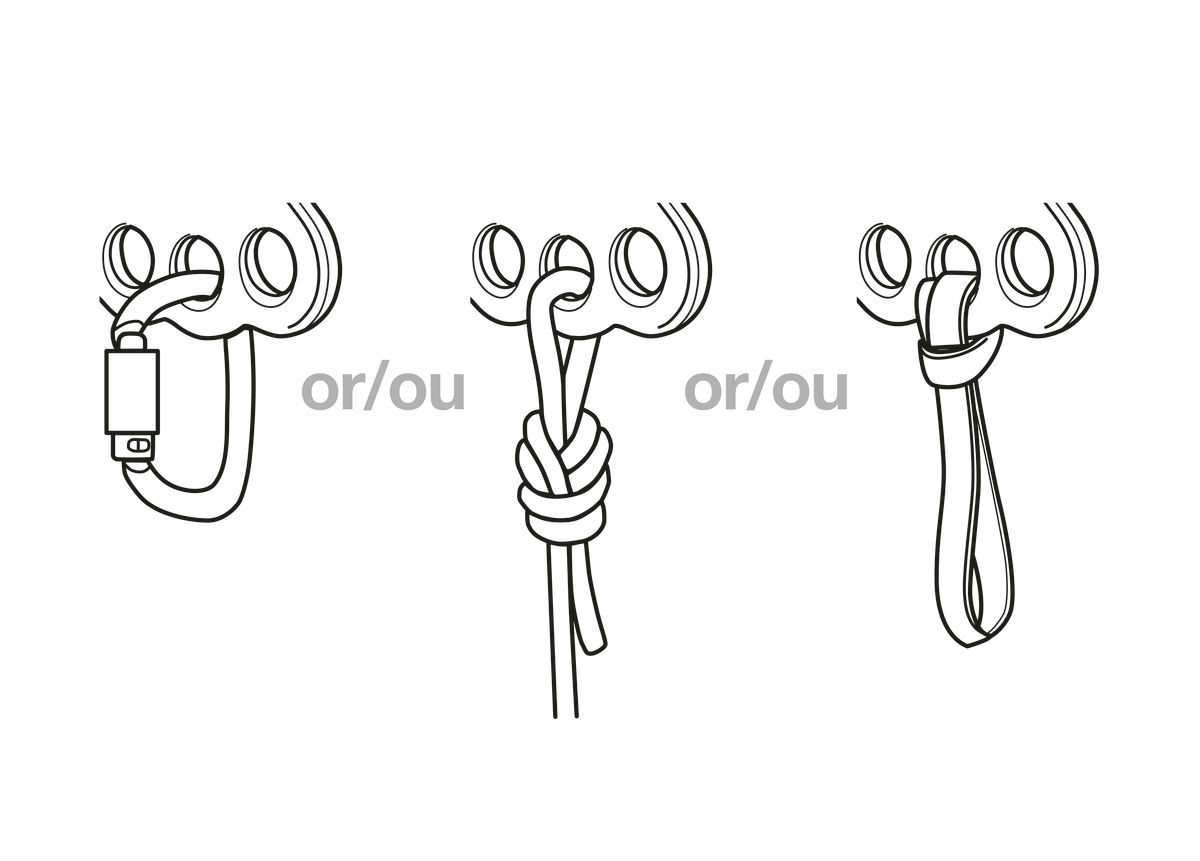

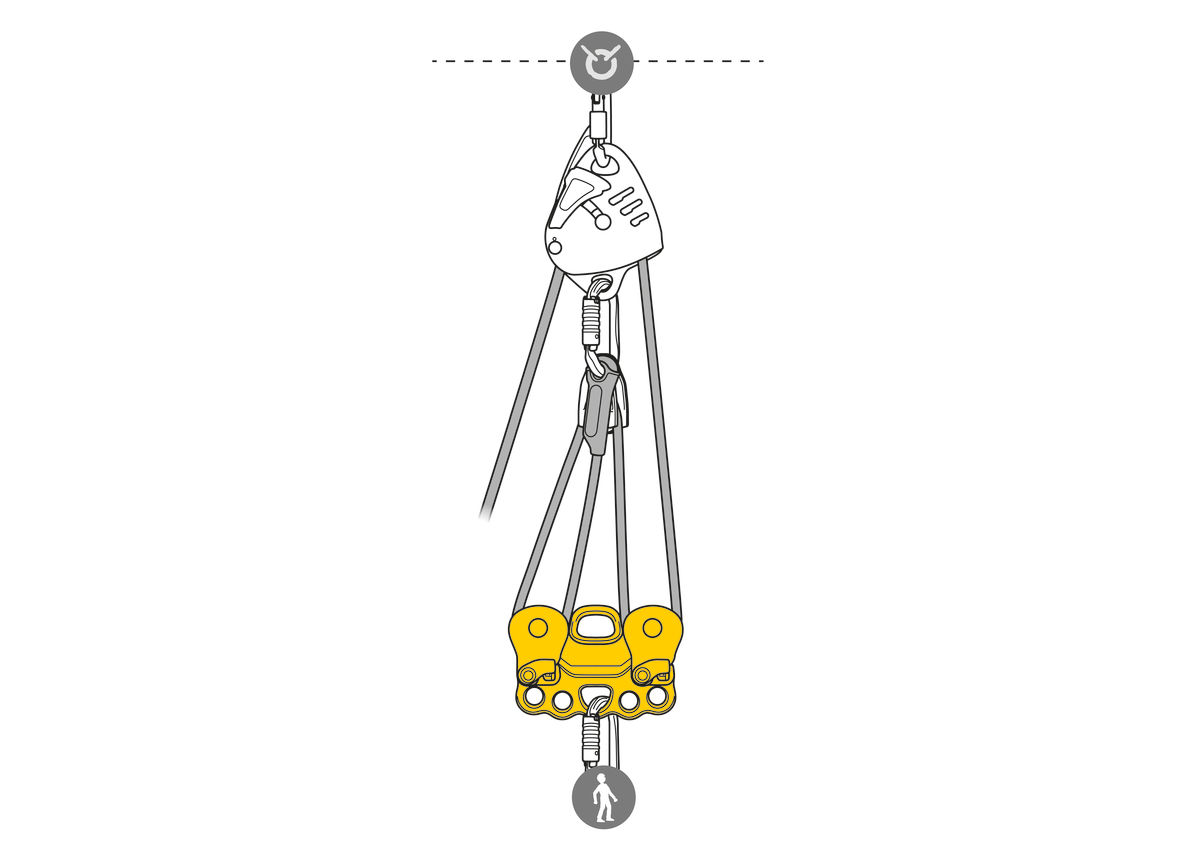

Das System kann verdoppelt werden: Bei nahe liegenden Seilen werden zwei REEVE-Transportrollen nebeneinander verwendet, bei weit voneinander entfernten Seilen wird die zweite Umlenkrolle an der oberen Verbindungsöse befestigt. Die Transportrolle kann in einem Flaschenzug eingesetzt werden. Die Ösen sind so dimensioniert, dass sie das Durchführen von Seilen und Schlingen für eine direkte Verbindung ermöglichen.

Die 19-mm-Ösen sind groß genug für das Umdrehen der meisten Karabiner. Die in einer Reihe angeordneten Verbindungsösen in ungerader Zahl ermöglichen die Zentrierung und gewährleisten das Gleichgewicht des Systems. Die REEVE kann von bis zu drei Personen gleichzeitig genutzt werden.

Gewicht: 650g
Zertifizierung(en): CE EN 12278, NFPA 2500 General Use, UKCA, XF 494: FZL-H-T 9.5/13
Material: Aluminium, Edelstahl, Polyamid
Durchmesser min: 7mm
Durchmesser max: 13mm
Seilscheibe (Typ): gekapseltes Kugellager
Durchmesser der Seilscheibe: 38mm
Maximale Gebrauchslast: 4 x 2 kN = 8 kN
Bruchlast: 36kN
Wirkungsgrad: 95%
Farbe: Gelb

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

Zugehörige Produkte

9.32 %

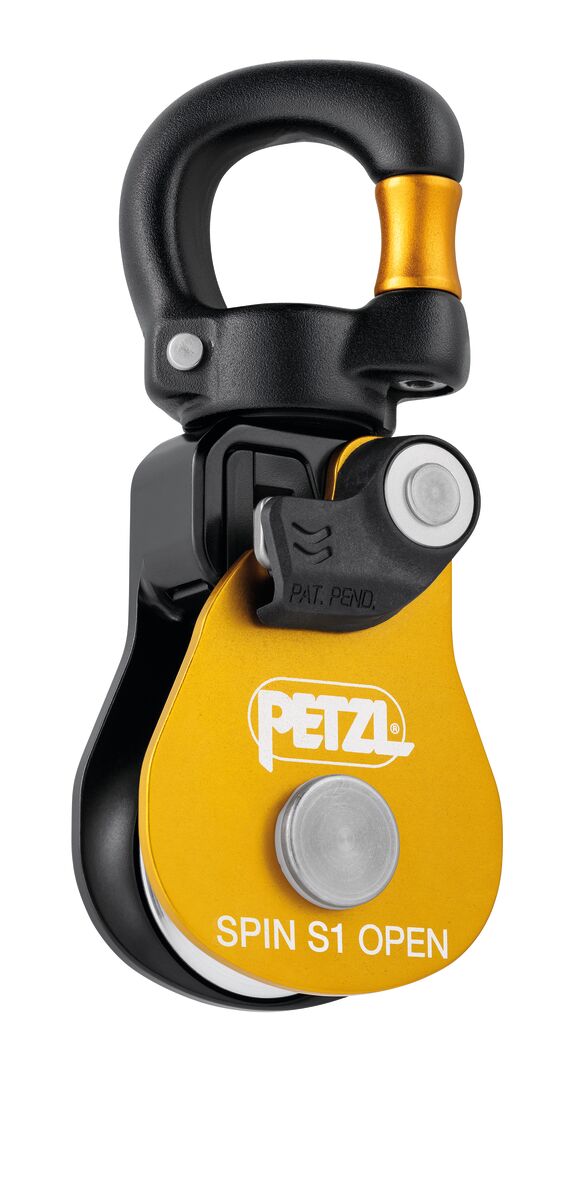

PETZL PULLEY SPIN S1 OPEN

The SPIN S1 OPEN pulley can be opened even when it is attached to the anchor point and makes it easier to set up pulley systems, auxiliary ropeways and deflection systems. It is compact and makes it possible to reduce volume and weight, especially in technical rescue operations. The pulley with encapsulated ball bearing ensures excellent efficiency. Handling is facilitated by a swivel that allows the pulley to be aligned under load. The screw-on swivel also ensures that the pulley is compatible with a wide range of products (tripod, REEVE transport pulley, PAW rigging plate, etc.) and ensures that the system is compact.Cross-selling: SPIN S1 SPIN L1 SPIN L1D SPIN L2 REEVE PARALLEL 10.5 mm AXIS 11 mm RAY 11 mm OK Am'D Bm'D OXAN VULCAN

€99.75* €110.00*

9.33 %

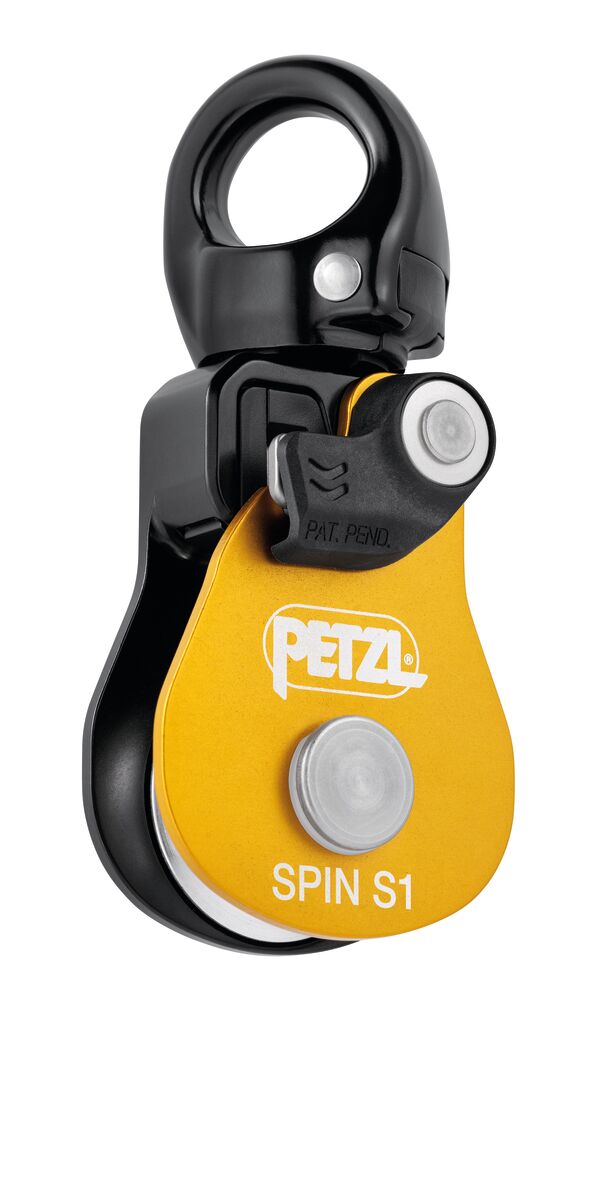

PETZL PULLEY SPIN S1

The SPIN S1 pulley can be opened even when it is attached to the anchor point and makes it easier to set up pulley systems, auxiliary ropeways and deflection systems. It is compact and makes it possible to reduce volume and weight, especially in technical rescue operations. The pulley with encapsulated ball bearing ensures excellent efficiency. Handling is facilitated by a swivel that allows the pulley to be aligned under load and carabiners, ropes or slings to be attached directly.Cross-selling: SPIN L1 SPIN L1D SPIN L2 SPIN S1 OPEN REEVE PARALLEL 10.5 mm AXIS 11 mm RAY 11 mm OK Bm'D Am'D OXAN VULCAN

€86.14* €95.00*

14.74 %

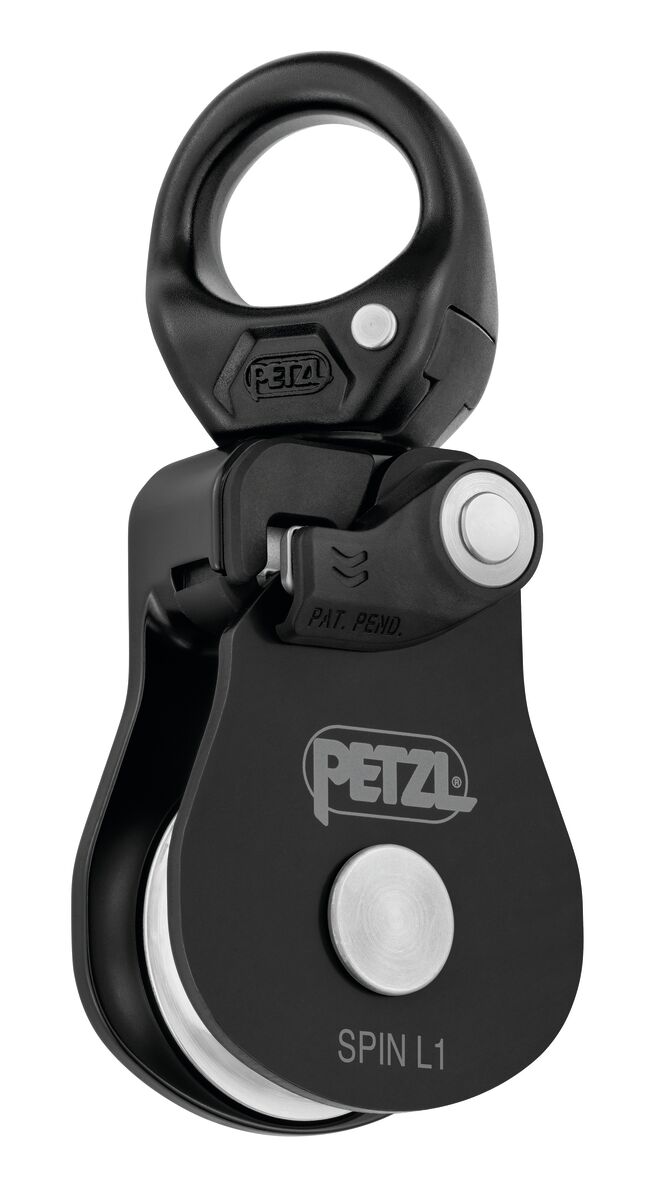

PETZL PULLEY SPIN L1

Simple pulley with swivel and very high efficiency The SPIN L1 pulley can be opened even when it is attached to the anchor point and makes it easier to set up pulley systems, auxiliary ropeways and deflection systems. The large pulley with encapsulated ball bearing ensures excellent efficiency. Handling is facilitated by a swivel, which allows the pulley to be aligned under load and carabiners, ropes or slings to be attached directly.Cross-selling: SPIN L2 SPIN L1D PARALLEL 10.5 mm AXIS 11 mm RAY 11 mm OK Am'D Bm'D OXAN VULCAN

Variants from €95.23*

€99.76* €117.00*

15.71 %

PETZL PULLEY SPIN L2

Double pulley with swivel and very high efficiency The SPIN L2 double pulley can be opened even when it is attached to the anchor point, making it easier to set up pulley systems and auxiliary ropeways. Thanks to the two pulleys mounted in parallel and the additional attachment eye, the pulley can be used to set up various complex pulley systems. The large pulleys with encapsulated ball bearings ensure excellent efficiency. Handling is facilitated by a swivel, which allows the pulley to be aligned under load and carabiners, ropes or slings to be attached directly.Cross-selling: SPIN L1 SPIN L1D PARALLEL 10.5 mm AXIS 11 mm RAY 11 mm OK Am'D Bm'D OXAN VULCAN

€131.50* €156.00*

19.38 %

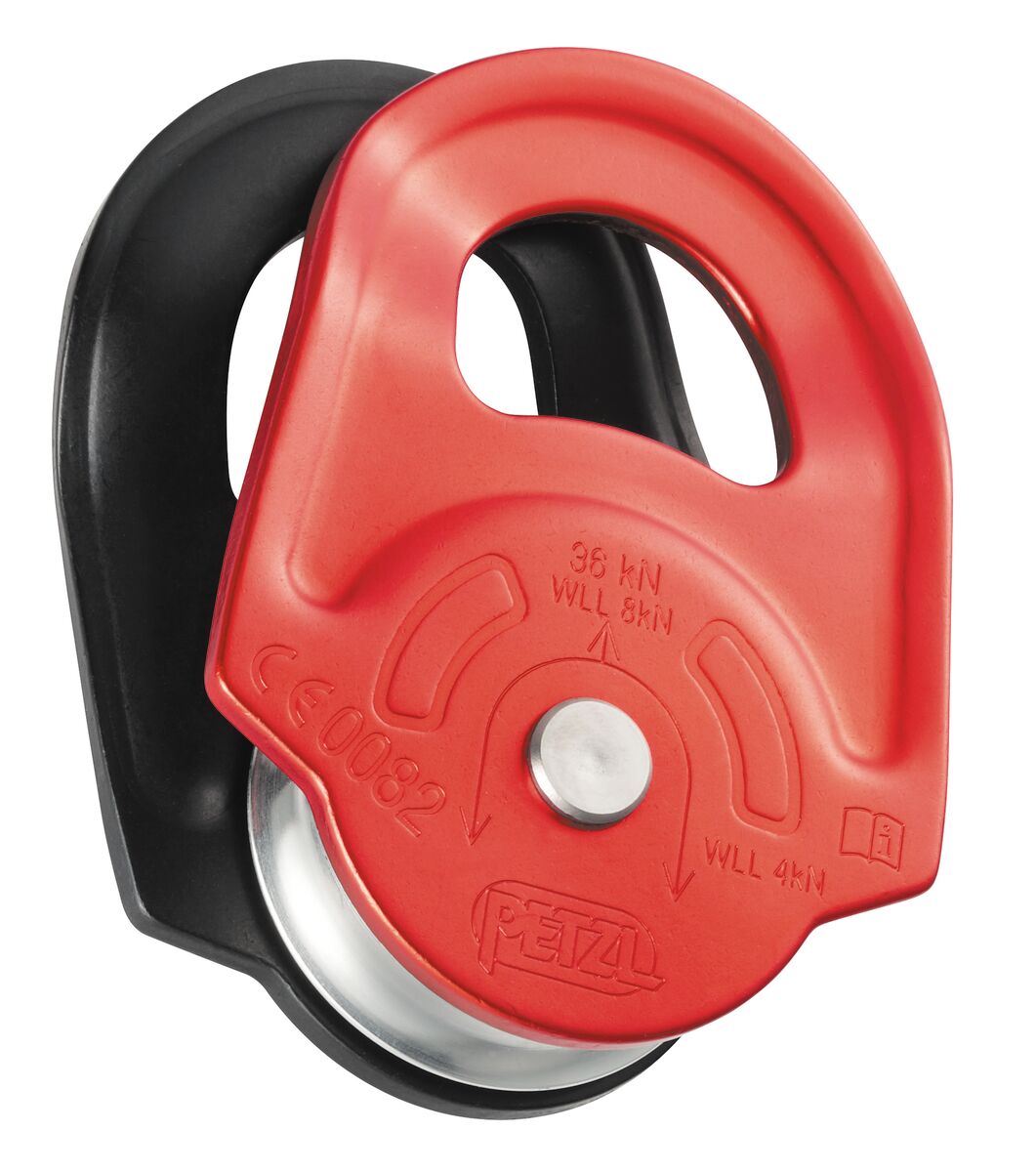

PETZL PULLEY RESCUE

Pulley with high breaking load and very high efficiency The RESCUE pulley with very high efficiency is designed for intensive use in rescue operations. It has been specially designed for lifting heavy loads and for intensive use. The large pulley with encapsulated ball bearing ensures a high degree of efficiency. Up to three carabiners can be attached.

€47.16* €58.50*

9.32 %

PETZL ROPE PARALLEL 10.5 MM

Supple and lightweight semi-static rope for hard-to-reach areas The semi-static Petzl PARALLEL 10.5 mm rope is designed for areas that are difficult to access. The small diameter guarantees very good suppleness and low weight. It has low elongation under load, which improves efficiency at the start of the ascent. EverFlex technology ensures high suppleness and long-term maintenance of performance characteristics.

Variants from €86.14*

€90.68* €100.00*

9.31 %

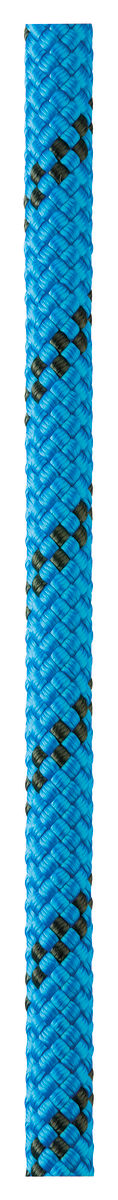

PETZL ROPE AXIS 11 MM REGULAR

The semi-static AXIS 11 mm rope is designed for working at height. The standard diameter ensures that the rope sits comfortably in the hand for easier handling. EverFlex technology guarantees high suppleness and long-lasting performance. Rope available in six colours and four lengths.Cross-selling: ASAP® LOCK I'D® S I'D® EVAC, AXIS 11 MM SPECIAL

Variants from €104.29*

€213.12* €235.00*

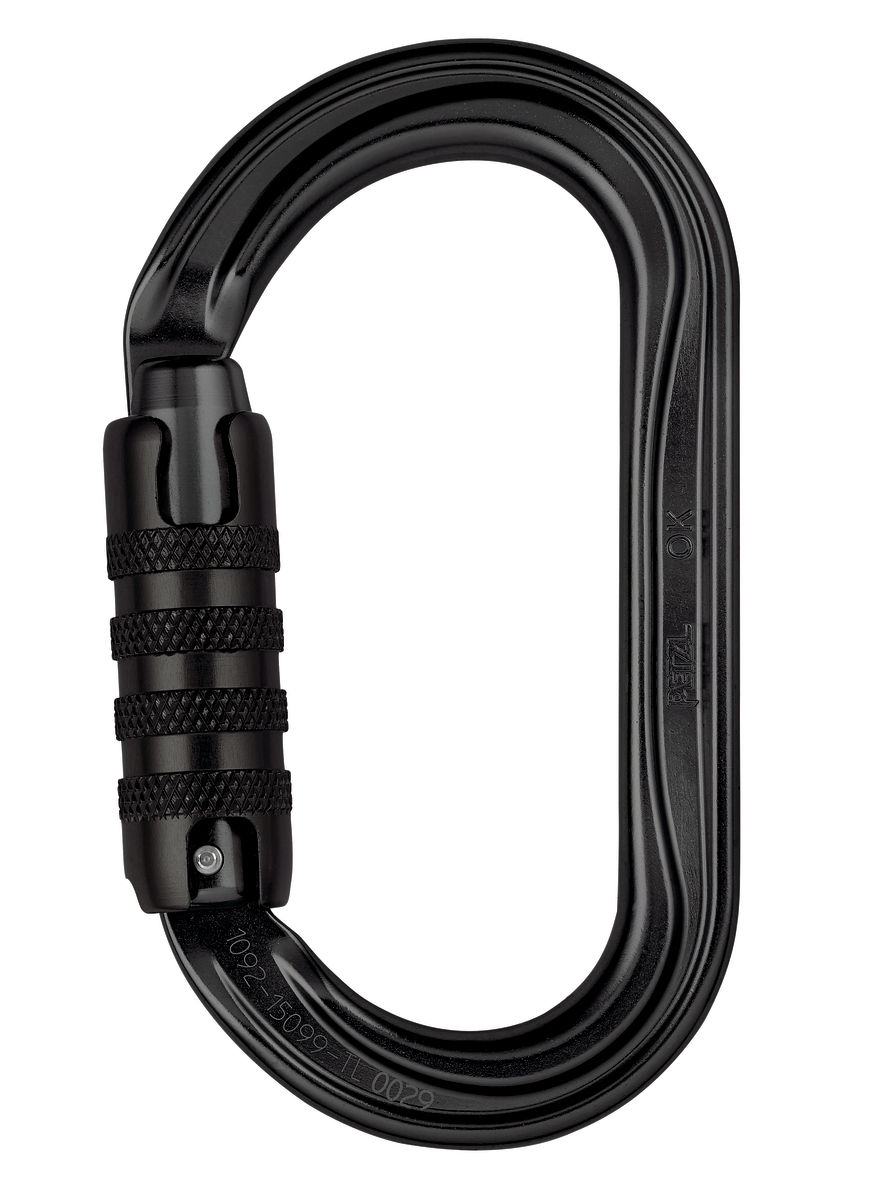

PETZL CARABINER OK

The lightweight Petzl-OK carabiner is made of aluminium. Its oval shape makes it possible to optimally position devices such as pulleys, rope clamps and travelling fall arresters. The edge-free surface on the inside and the keylock system make it easy to attach and detach. It is available with three locking systems: the automatic TRIACT-LOCK and BALL-LOCK systems and the manual SCREW-LOCK system. The OK can be combined with the CAPTIV positioning bracket to favour the load on the carabiner in the longitudinal axis, prevent it from twisting and ensure that it forms a fixed unit with the device.

Variants from €12.08*

€16.95*

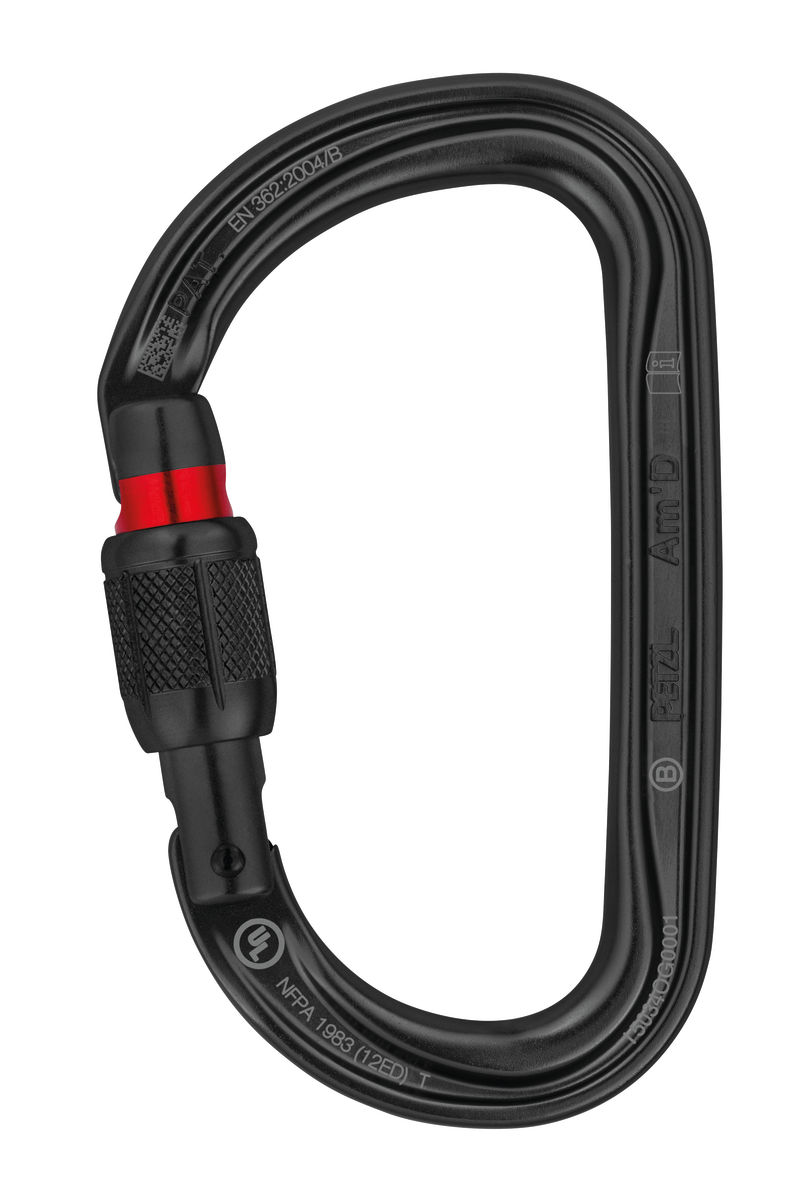

PETZL KARABINER Am'D

The lightweight asymmetric Am'D carabiner from Petzl is made of aluminium. Its D-shape is ideal for attaching various devices (abseiling devices or lanyards). The edge-free surface on the inside and the keylock system make it easy to clip and unclip. The Am'D carabiner is available with three locking systems: the automatic TRIACT-LOCK and BALL-LOCK systems and the manual SCREW-LOCK system. The Am'D can be combined with Petzl's CAPTIV positioning bar to favour the load on the carabiner along the longitudinal axis, prevent it from twisting and ensure that it forms a fixed unit with the device.

Variants from €13.94*

€16.22*

2.86 %

PETZL CARABINER WILLIAM

The lightweight, large asymmetric Petzl WILLIAM carabiner is made of aluminium. Its pear-shaped design is practical for connecting multiple elements. The edgeless surface on the inside and the keylock system make it easy to clip and unclip. The WILLIAM carabiner is available with three locking systems: the automatic TRIACT-LOCK and BALL-LOCK systems and the manual SCREW-LOCK system. It can be combined with the CAPTIV positioning bar to favour the load on the carabiner in the longitudinal axis, prevent it from twisting and ensure that it forms a fixed unit with the device.

Variants from €16.63*

€20.40* €21.00*

9.36 %

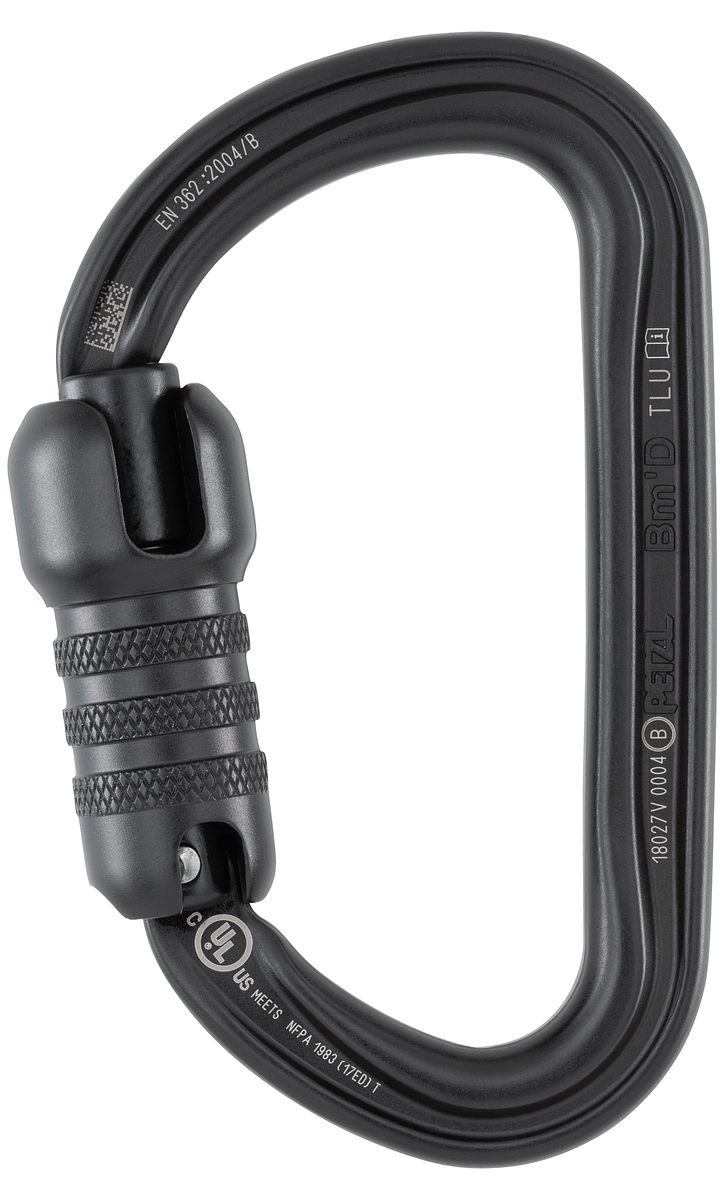

PETZL KARABINER Bm'D

The lightweight asymmetric Bm'D carabiner from Petzl is made of aluminium. Its D-shape is ideal for attaching various devices (abseiling devices or lanyards for work positioning). The edge-free surface on the inside and the keylock system make it easy to attach and detach. The Bm'D carabiner is equipped with the TRIACT-LOCK automatic locking system. The reinforced sleeve improves the frontal and lateral breaking load of the gate. The Bm'D can be combined with a positioning bar to favour the load on the carabiner in the longitudinal axis, prevent it from twisting and ensure that it forms a fixed unit with the device.

Variants from €22.67*

€24.02* €26.50*

13.65 %

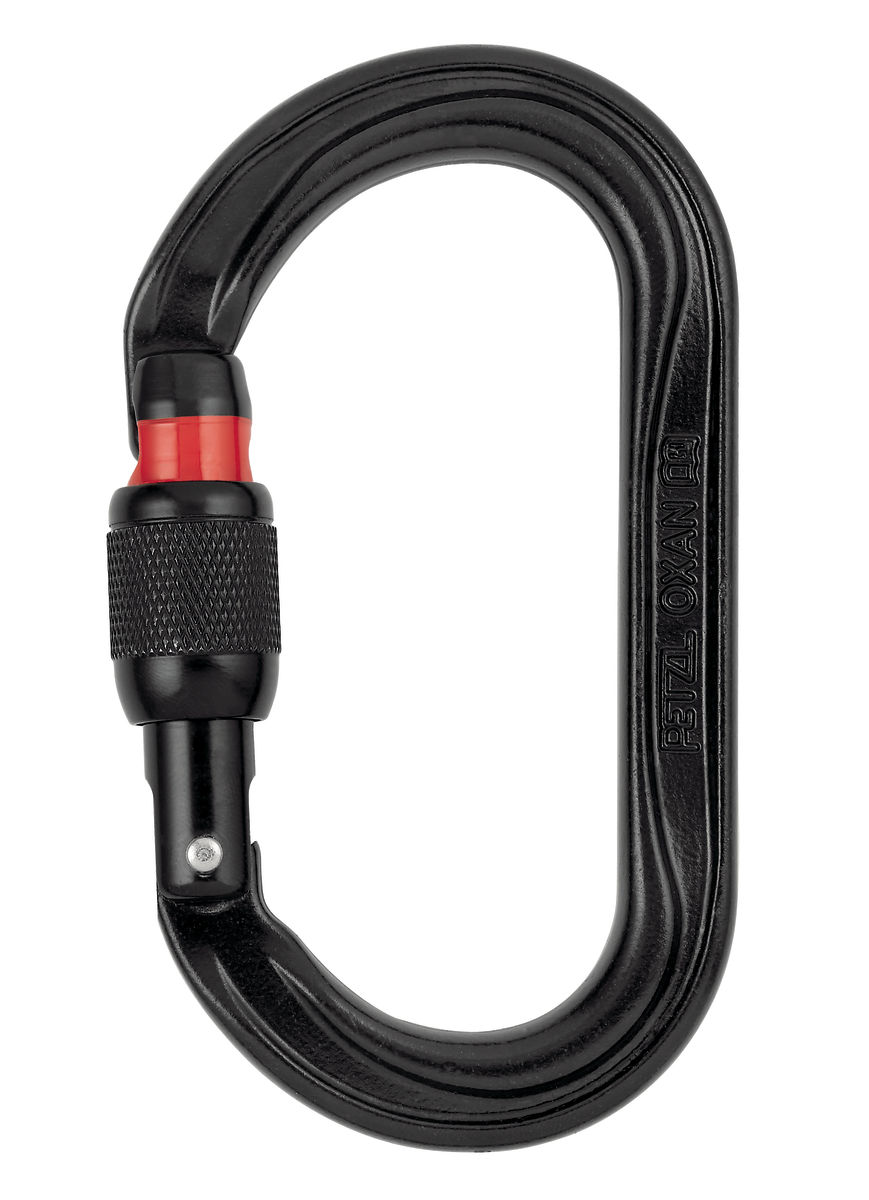

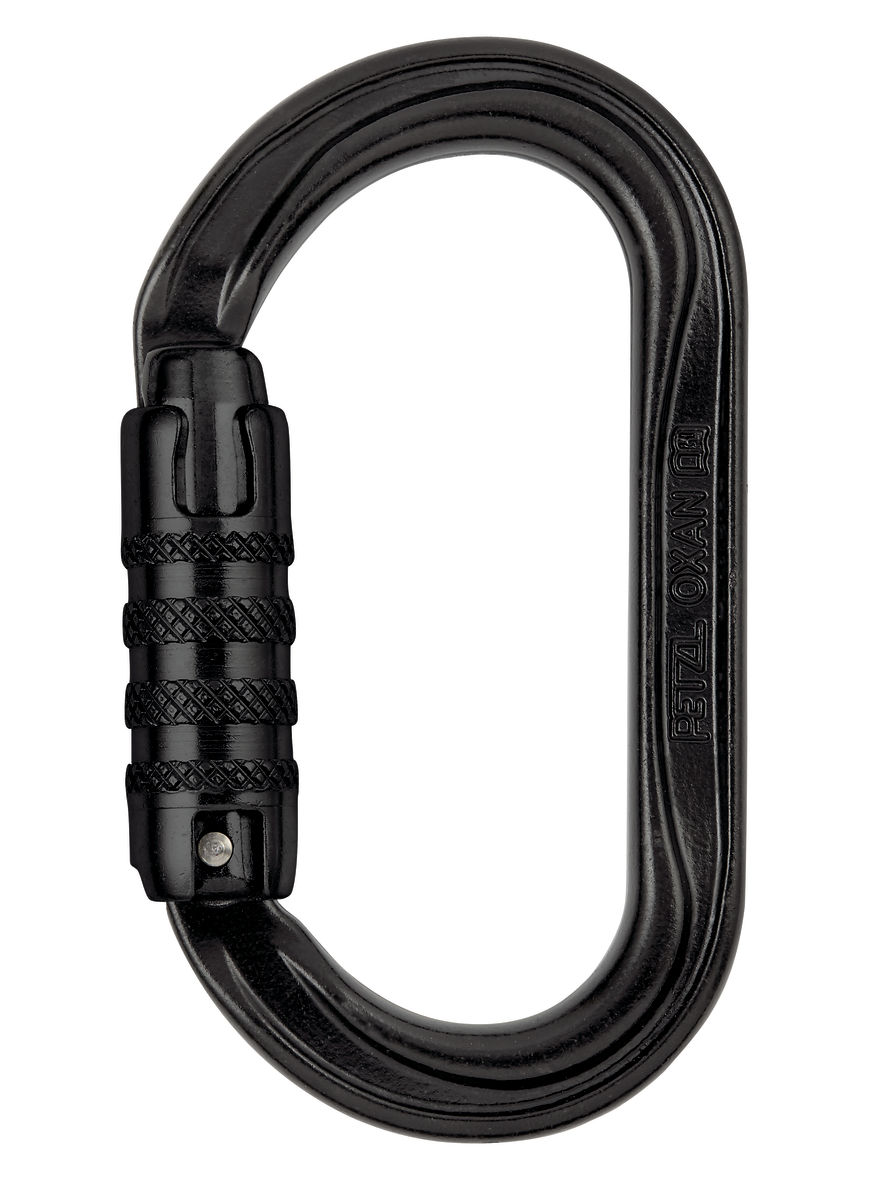

PETZL STEEL CARABINER OXAN

Oval carabiner with high breaking loadThe Petzl OXAN is a steel carabiner with a high breaking load for difficult working environments. The oval symmetrical shape allows the carabiner to be optimally positioned when setting up anchor points or clipping to metal structures. The OXAN can be combined with the CAPTIV positioning bar to favour the load on the carabiner in the longitudinal axis, prevent it from twisting and ensure that it forms a solid unit with the device.

Variants from €9.52*

€10.88* €12.60*

15.3 %

PETZL STEEL CARABINER OXAN

Variants from €9.52*

€16.77* €19.80*

9.32 %

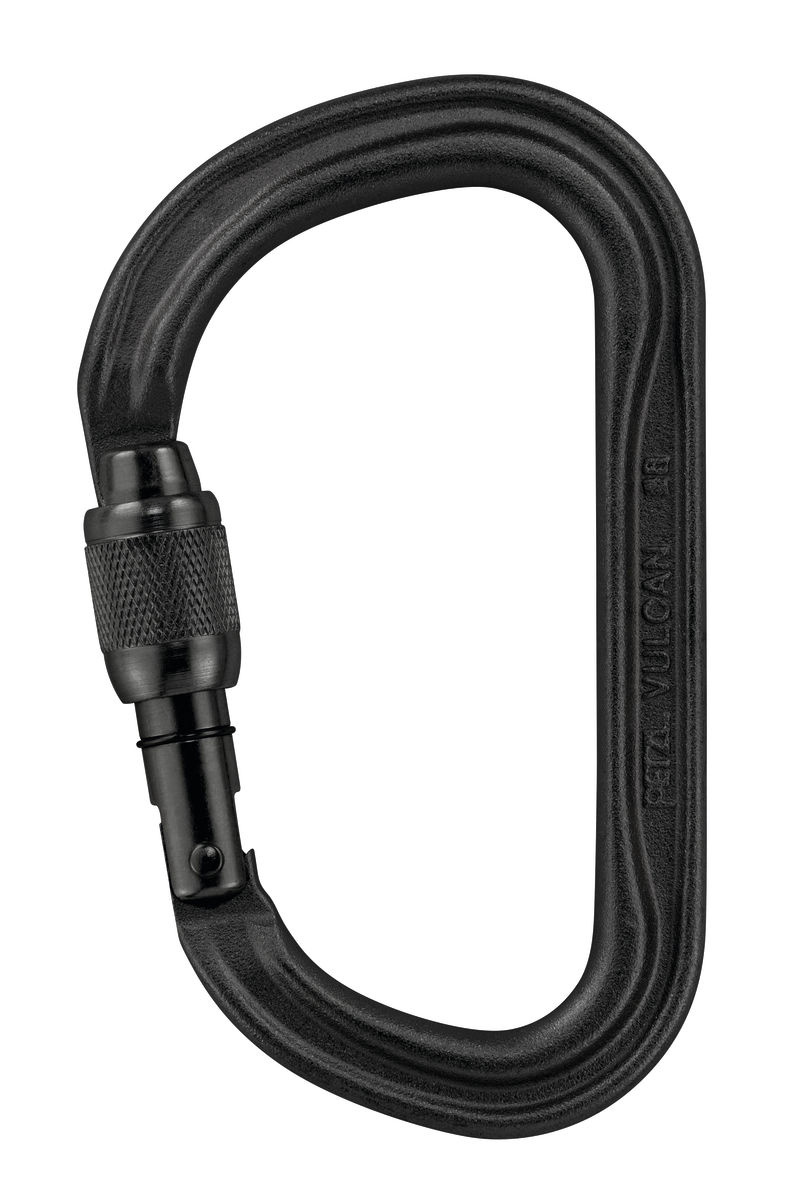

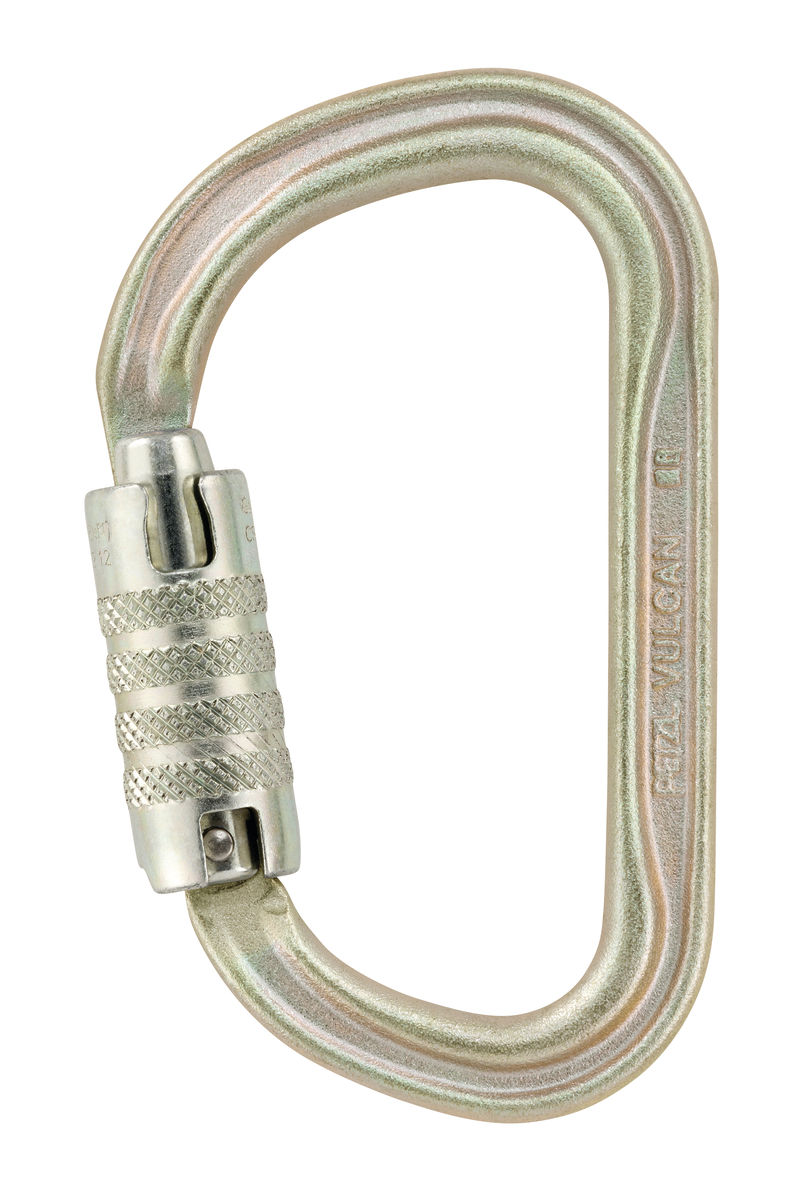

PETZL CARABINER VULCAN
