PETZL PULLEY TWIN RELEASE

€317.41*

% €350.00* (9.31% saved)

Prices inclusive VAT / Free delivery on orders over 50€

Available in 14 days, delivery time 1-3 days

Detachable double pulley with backstop for pulley systems

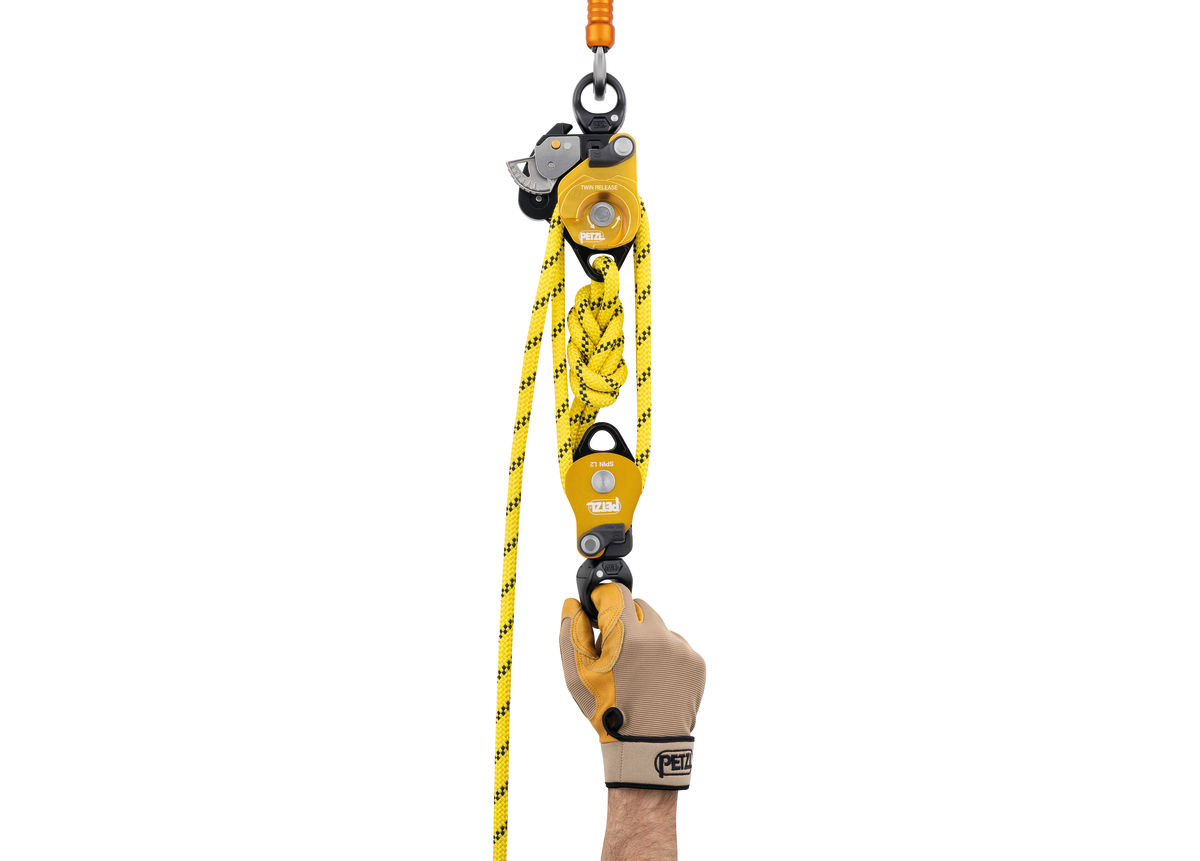

The TWIN RELEASE pulley with backstop is detachable and specially designed for setting up 4:1 pulley systems when working in confined spaces and technical rescue situations. The clamping cam can be released thanks to the ergonomically shaped lever. The brake integrated into the movable side section and the bevelled main roller with only one direction of travel increase braking friction for better control when lowering heavy loads. Two rollers ensure excellent efficiency when lifting loads. Handling is facilitated by a swivel, which allows the pulley to be aligned under load and carabiners, ropes or slings to be attached directly.

Cross-selling: SPIN L2 TWIN PARALLEL 10.5 mm AXIS 11 mm RAY 11 mm OK Am'D WILLIAM Bm'D OXAN VULCAN

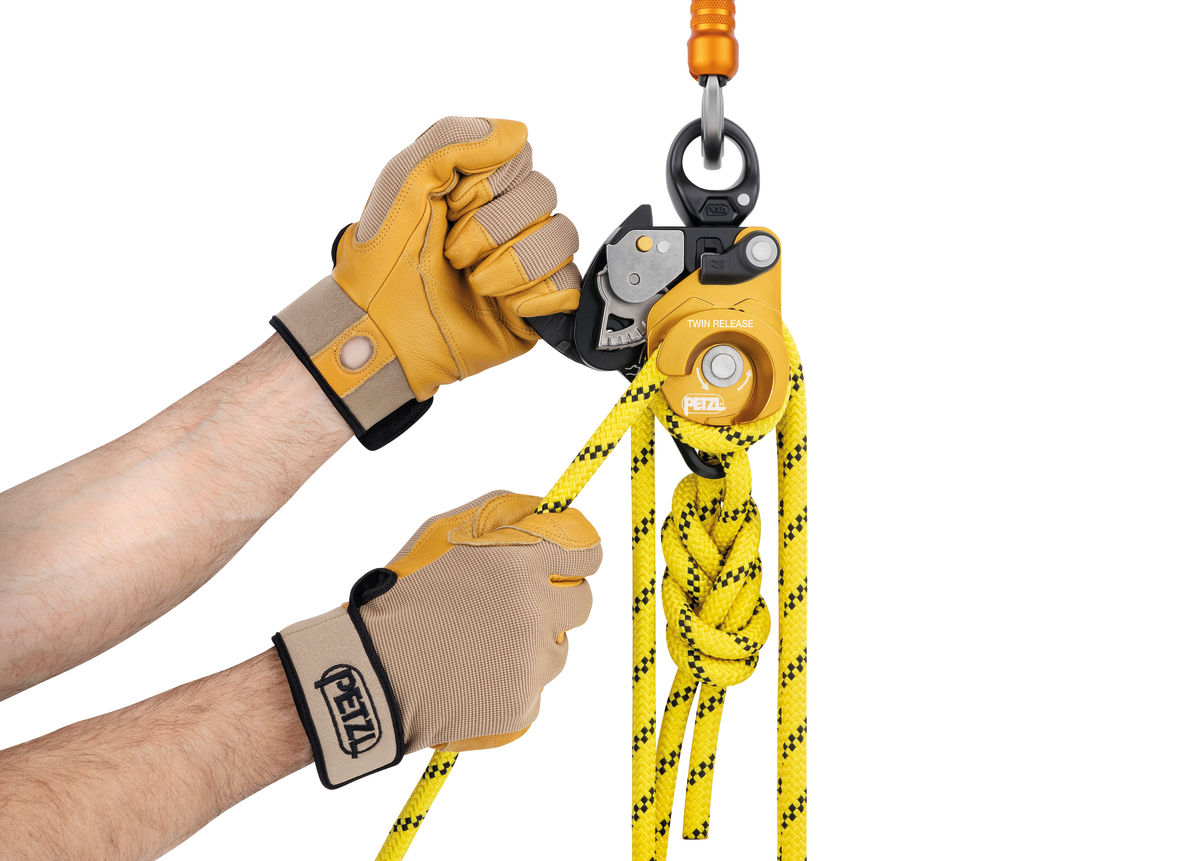

Der ergonomisch geformte Hebel erleichtert das Lösen des Klemmnockens. Die in das bewegliche Hauptseitenteil integrierte Bremse ermöglicht ein komfortables und präzises Ablassen von schweren Lasten. Der Klemmnocken kann in geöffneter Position eingerastet werden, um das Einziehen des Seils zu erleichtern. Der Klemmnocken ohne Zähne schützt das Seil und ermöglicht, Abseil- und Hebevorgänge ruckelfrei abzuwechseln.

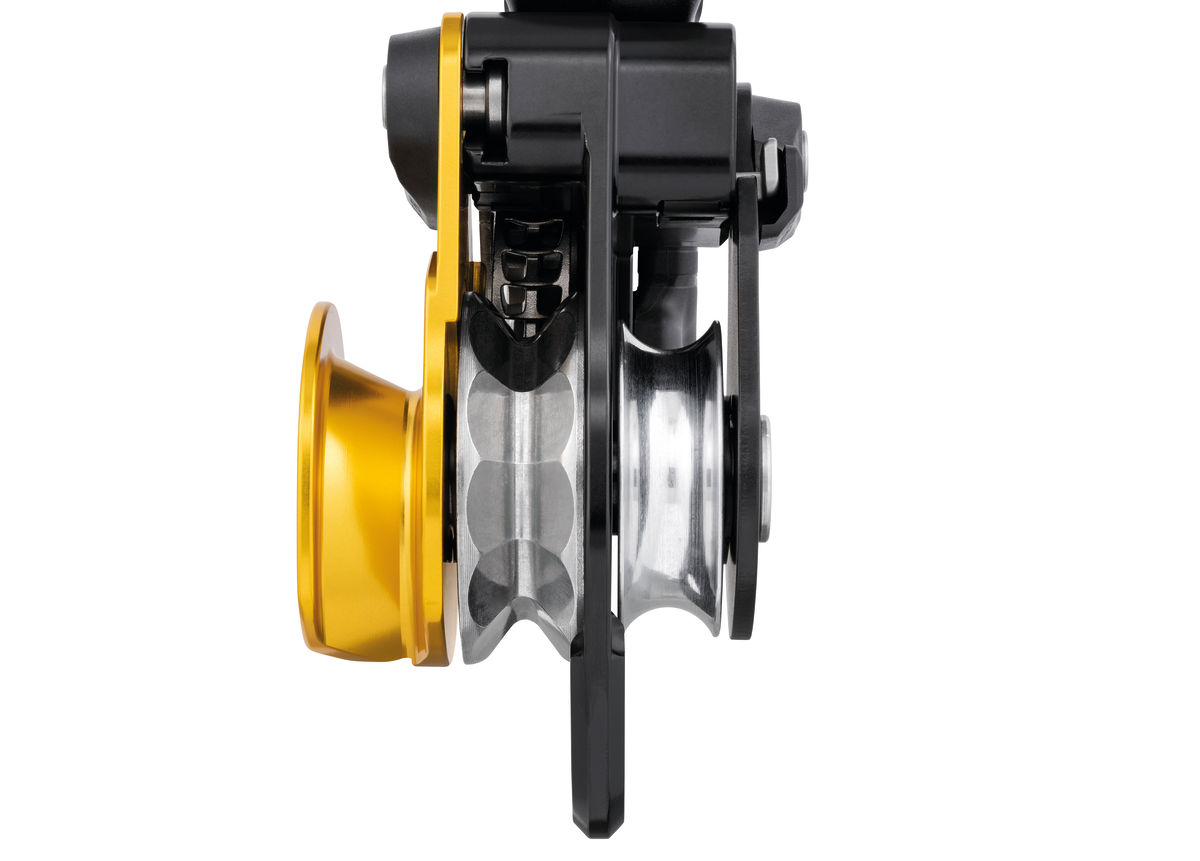

Optimiert für 4:1-Flaschenzugsysteme: Die großen Laufrollen mit gekapseltem Kugellager gewährleisten einen ausgezeichneten Wirkungsgrad beim Heben von Lasten. Die mit Abschrägungen versehene Hauptlaufrolle mit nur einer Laufrichtung gewährleistet einen ausgezeichneten Wirkungsgrad beim Heben von Lasten und bietet zusätzliche Kontaktflächen mit dem Seil, um die Bremsreibung beim Ablassen von schweren Lasten zu erhöhen. Parallel montierte Laufrollen und eine zusätzliche Befestigungsöse ermöglichen die Einrichtung verschiedener komplexer Flaschenzugsysteme.

Einfache Verwendung: Die beweglichen Seitenteile lassen sich auch mit Handschuhen schnell und einfach in drei Schritten öffnen. Rote Indikatoren sind sichtbar, solange die Seitenteile nicht verriegelt sind. Das Gerät kann beim Einlegen des Seils am Anschlagpunkt eingehängt bleiben. Die Öffnung im Hebel ermöglicht, eine zum Bedienen des Geräts aus der Distanz dienende Reepschnur zu befestigen.

Einfaches Handling dank Wirbel:

ermöglicht das Ausrichten der Umlenkrolle unter Last
ermöglicht das Einhängen von bis zu drei Karabinern
Der Wirbel und die zusätzliche Befestigungsöse ermöglichen die Verwendung von Seilen und Schlingen zur Vereinfachung der Vorgänge.

Gewicht: 800g
Material: Aluminium, Edelstahl, Polyamid
Zertifizierungen: CE EN 567, CE EN 12278 (teilweise*), NFPA 2500 Pulley General Use, NFPA 2500 Rope Grab Technical Use, UKCA, XF 494: FZL-H-T 9.5/13, XF 494: FZL-Z-Q 9.5/13 * erfüllt die Anforderungen der Norm CE EN 12278
Zertifizierungen des Systems: ANSI Z359.4 Synthetic Rope Tackle Block (weitere Informationen in der Gebrauchsanweisung)
Durchmesser min: 8mm
Durchmesser max: 13mm
Seilscheibe (Typ): gekapseltes Kugellager
Durchmesser der mit Abschrägungen versehenen Laufrolle: 40mm
Durchmesser der Seilscheibe: 38mm
Wirkungsgrad: 95%
Maximale Gebrauchslast: 280 kg
Bruchlast der zusätzlichen Befestigungsöse: 22 kN
Bruchlast: 36kN

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

Zugehörige Produkte

15.71 %

PETZL PULLEY SPIN L2

Double pulley with swivel and very high efficiency The SPIN L2 double pulley can be opened even when it is attached to the anchor point, making it easier to set up pulley systems and auxiliary ropeways. Thanks to the two pulleys mounted in parallel and the additional attachment eye, the pulley can be used to set up various complex pulley systems. The large pulleys with encapsulated ball bearings ensure excellent efficiency. Handling is facilitated by a swivel, which allows the pulley to be aligned under load and carabiners, ropes or slings to be attached directly.Cross-selling: SPIN L1 SPIN L1D PARALLEL 10.5 mm AXIS 11 mm RAY 11 mm OK Am'D Bm'D OXAN VULCAN

€131.50* €156.00*

PETZL PULLEY TWIN

Double Prusik pulley with high breaking load and very high efficiency The double TWIN guide pulley with high breaking load is designed for rescue operations. It enables a system to be set up with a backstop and high transmission ratio. The special side parts are designed for use with a self-clamping Prusik knot in backstop systems. Parallel-mounted rollers and an additional fastening eye enable the installation of various complex pulley systems. The large rollers run on encapsulated ball bearings and ensure excellent efficiency and up to three carabiners can be attached.

€134.58*

9.32 %

PETZL ROPE PARALLEL 10.5 MM

Supple and lightweight semi-static rope for hard-to-reach areas The semi-static Petzl PARALLEL 10.5 mm rope is designed for areas that are difficult to access. The small diameter guarantees very good suppleness and low weight. It has low elongation under load, which improves efficiency at the start of the ascent. EverFlex technology ensures high suppleness and long-term maintenance of performance characteristics.

Variants from €86.14*

€90.68* €100.00*

9.31 %

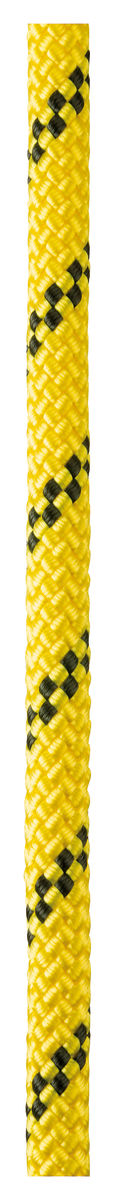

PETZL ROPE AXIS 11 MM REGULAR

The semi-static AXIS 11 mm rope is designed for working at height. The standard diameter ensures that the rope sits comfortably in the hand for easier handling. EverFlex technology guarantees high suppleness and long-lasting performance. Rope available in six colours and four lengths.Cross-selling: ASAP® LOCK I'D® S I'D® EVAC, AXIS 11 MM SPECIAL

Variants from €104.29*

€213.12* €235.00*

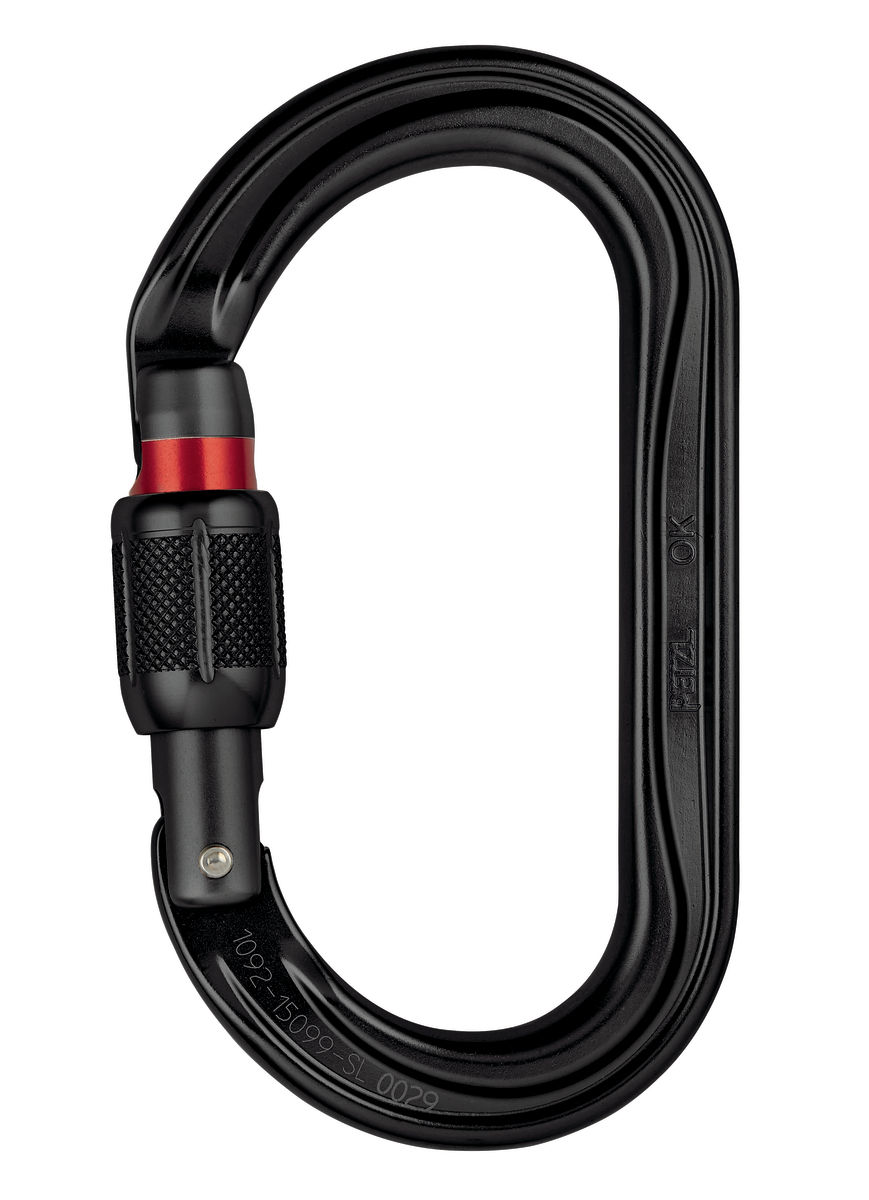

PETZL CARABINER OK

The lightweight Petzl-OK carabiner is made of aluminium. Its oval shape makes it possible to optimally position devices such as pulleys, rope clamps and travelling fall arresters. The edge-free surface on the inside and the keylock system make it easy to attach and detach. It is available with three locking systems: the automatic TRIACT-LOCK and BALL-LOCK systems and the manual SCREW-LOCK system. The OK can be combined with the CAPTIV positioning bracket to favour the load on the carabiner in the longitudinal axis, prevent it from twisting and ensure that it forms a fixed unit with the device.

Variants from €12.08*

€13.15*

9.38 %

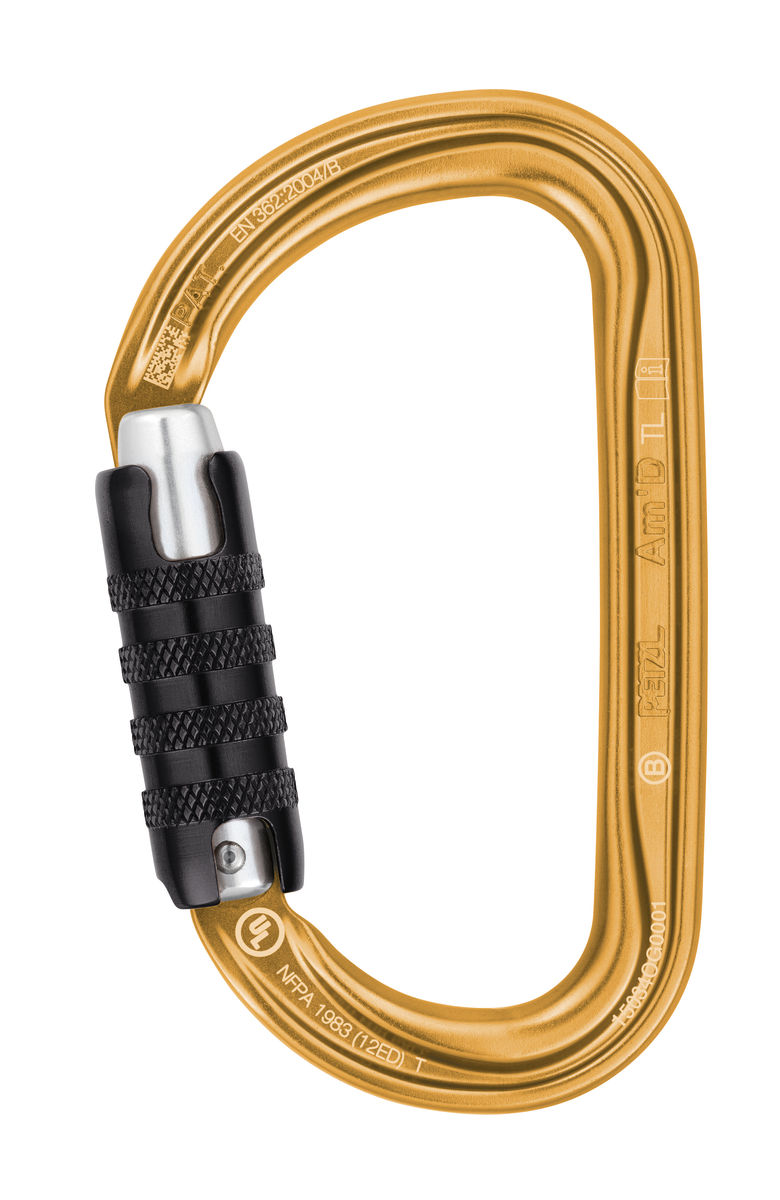

PETZL KARABINER Am'D

The lightweight asymmetric Am'D carabiner from Petzl is made of aluminium. Its D-shape is ideal for attaching various devices (abseiling devices or lanyards). The edge-free surface on the inside and the keylock system make it easy to clip and unclip. The Am'D carabiner is available with three locking systems: the automatic TRIACT-LOCK and BALL-LOCK systems and the manual SCREW-LOCK system. The Am'D can be combined with Petzl's CAPTIV positioning bar to favour the load on the carabiner along the longitudinal axis, prevent it from twisting and ensure that it forms a fixed unit with the device.

Variants from €13.94*

€19.03* €21.00*

3.29 %

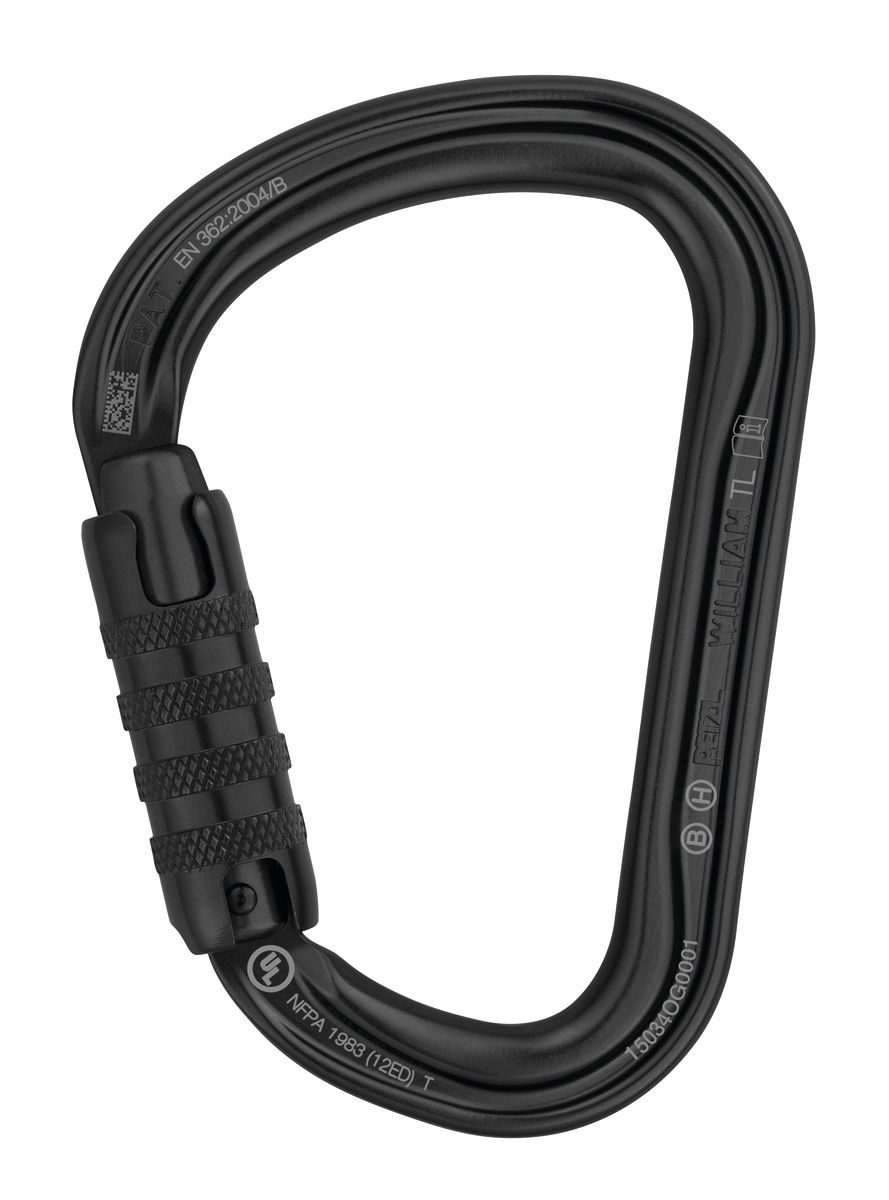

PETZL CARABINER WILLIAM
